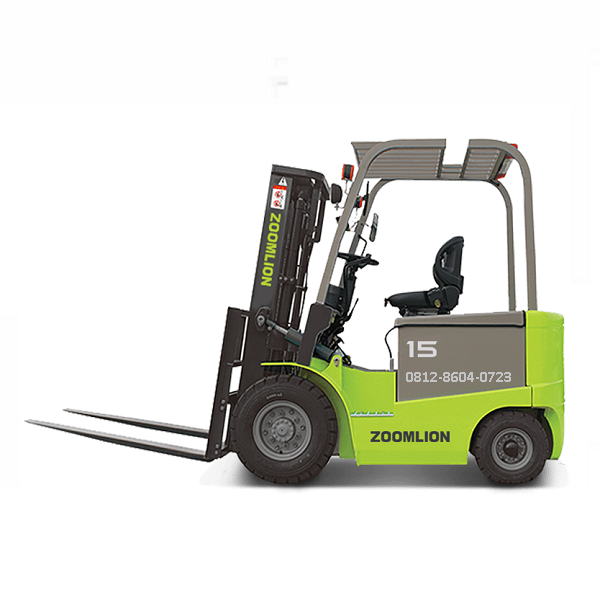

Zoomlion Forklift FD15Z | 1.5 ton



Specification  Unit

Rated capacity                                                       : 1500 kg

Load centre                                                            : 500 mm

Lifting height                                                         : 3000 mm

Free lifting height                                                 : 115 mm

Tilting angle                                                           : 6°/12°

Turning radius                                                      : 2060 mm

Front overhang                                                     : 400 mm

Tread                                                                        : 390 mm

Wheelbase                                                              : 3400 mm

Fork spread(Min./Max.)                                    : -

Working aisle width with pallet(Ast)           : -

Service weight                                                       : -

Operating pressure for attachment               : 17.5 Mpa
